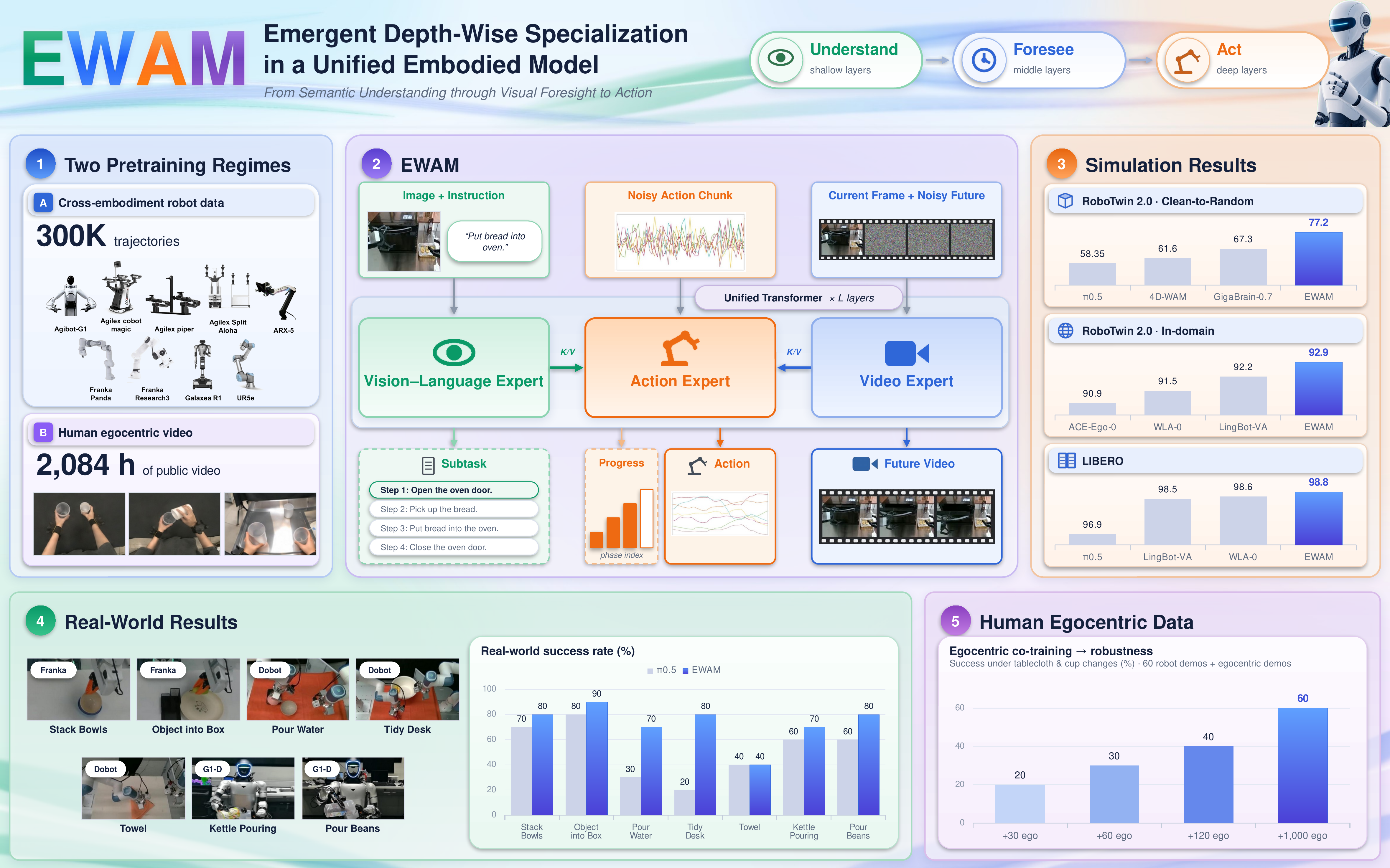

01 / Overview

One model.
Three forms of computation.

The vision-language expert contributes semantics and the video expert contributes prediction.
EWAM lets one action stream read both at every depth.

Model

One action-centric model

Action tokens read semantic, visual, predicted-future, and action information at every layer.

Finding

An emergent handoff

Without layer-wise supervision, attention moves from VL to predicted future to action across depth.

Results

Strong in sim and on robots

Surpasses VLA, WAM, and hybrid baselines; human data and subtask supervision add further gains.

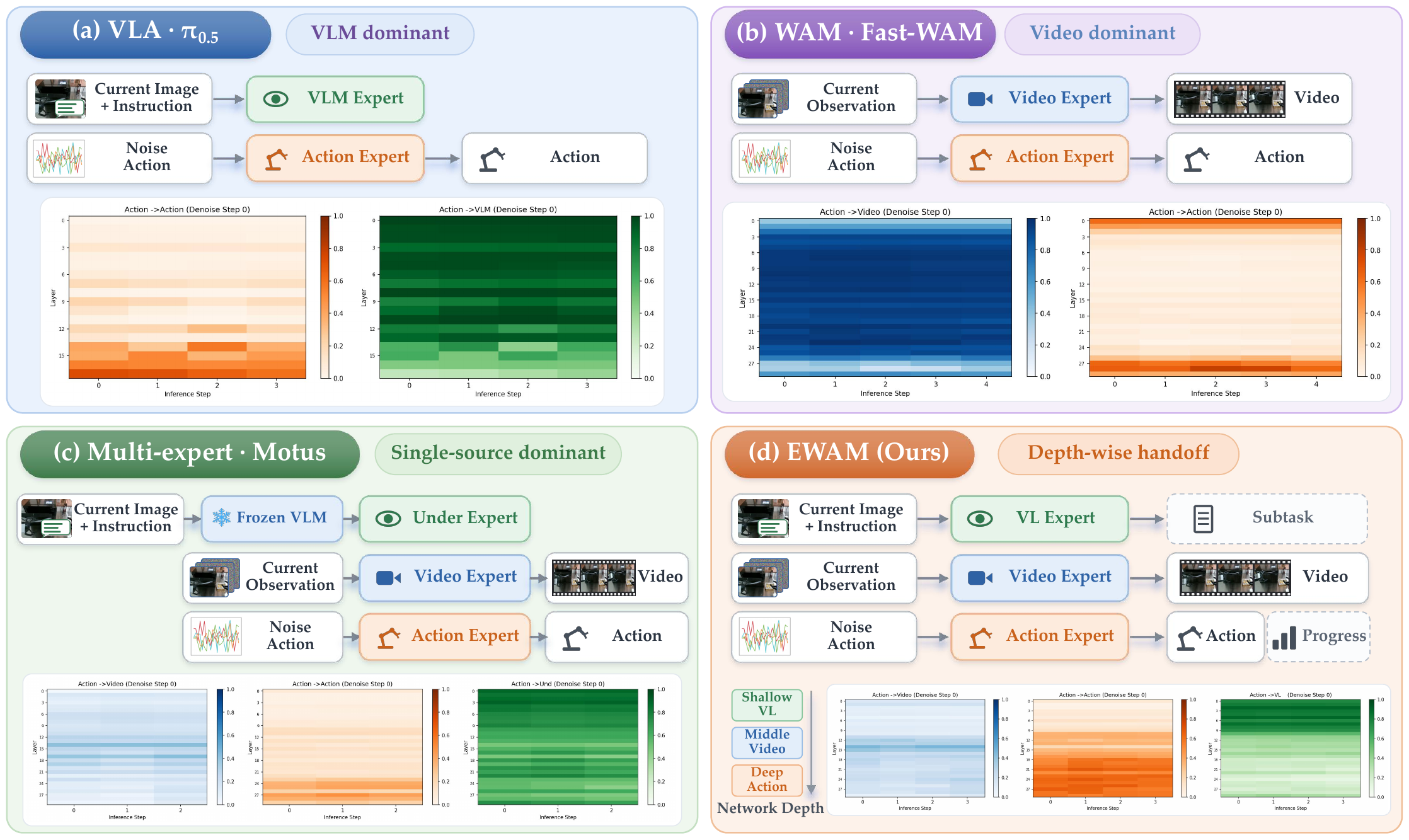

Comparison of VLA, WAM, Motus, and EWAM architectures and action-attention maps — Where does action attention go?

Existing models let one expert dominate action attention.
**EWAM hands attention off from vision-language, to predicted future, to action as depth grows.**

*Depth-wise handoff*

02 / Model & training

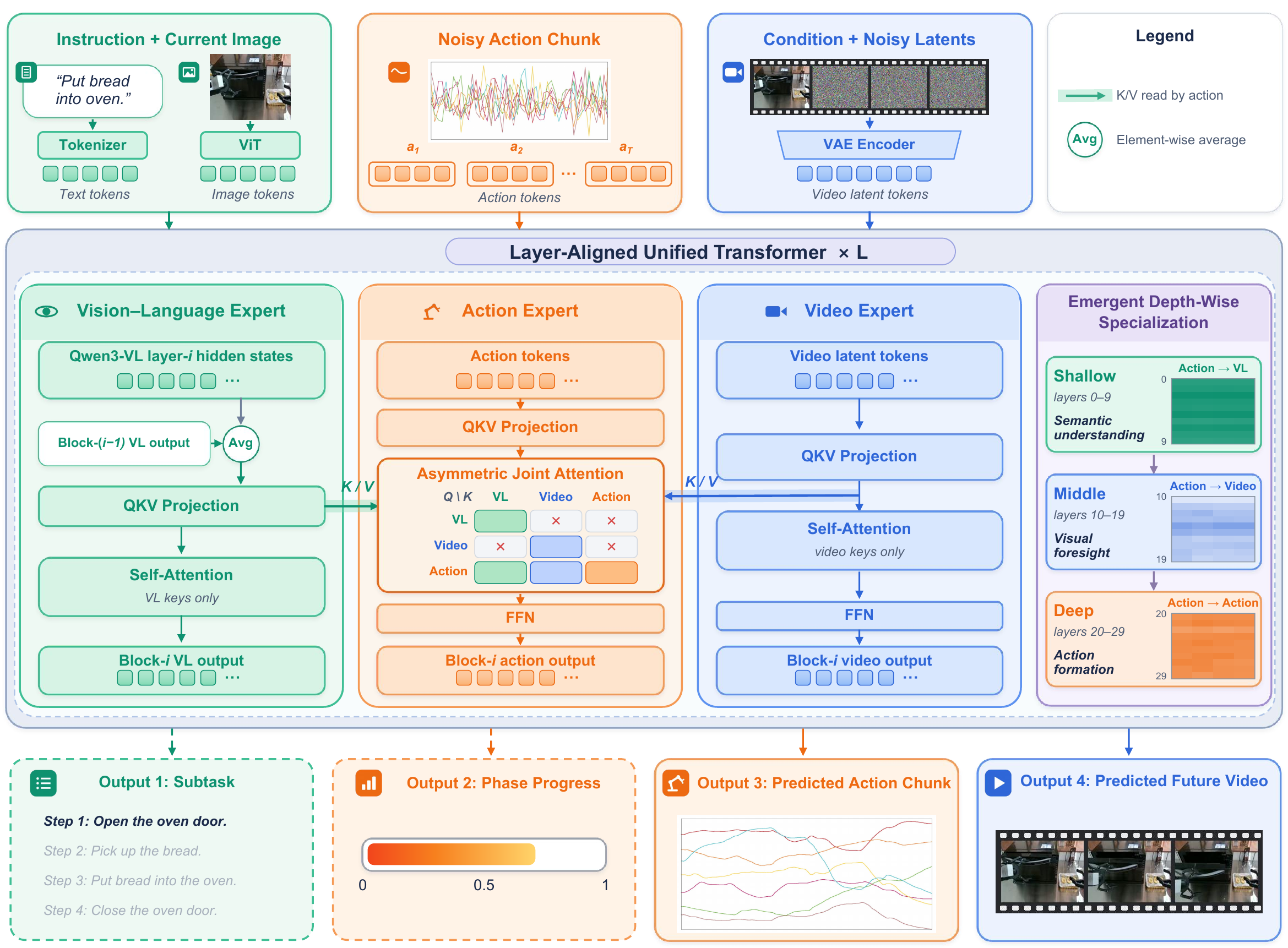

Action-centric asymmetric attention

The action stream can read every expert. Perceptual queries remain within their own streams.

VL

Vision-language expert

Qwen3-VL features encode the instruction and current image into layer-aligned semantic representations.

V

Video expert

A Wan2.2 video expert evolves noisy future-video latents into predictive visual context.

A

Action expert

Noisy action chunks query semantic, observed, predicted, and action keys in a shared forward process.

Training recipe

Pretraining regime B 2,084 hours

Human egocentric video

VITRA-1M, EgoDex, and Xperience, with wrist motion expressed as camera-relative end-effector displacements so human wrists and robot end-effectors share one task-space layout.

How human data is used →

Task-specific post-training 2 heads subtask text · phase index

Long-horizon awareness

A lightweight decoder predicts the active subtask and an MLP head regresses the phase index from the action stream. Both losses are added only during post-training; no external planner is used.

See the long-horizon results →

03 / Emergent specialization

A learned handoff across network depth

The architecture does not prescribe shallow, middle, or deep roles. The organization appears during training, replicates across tasks, and remains stable over denoising steps.

Layers 0–975.4%

Shallow understanding

VL tokens receive most action-query attention, grounding the instruction in the current scene.

Layers 10–19Layer 13

Intermediate foresight

Raw future-frame attention overtakes VL-image attention as prediction becomes the dominant visual source.

Layers 20–2959.5%

Deep action formation

Action self-attention dominates while concise semantic and predictive context is retained.

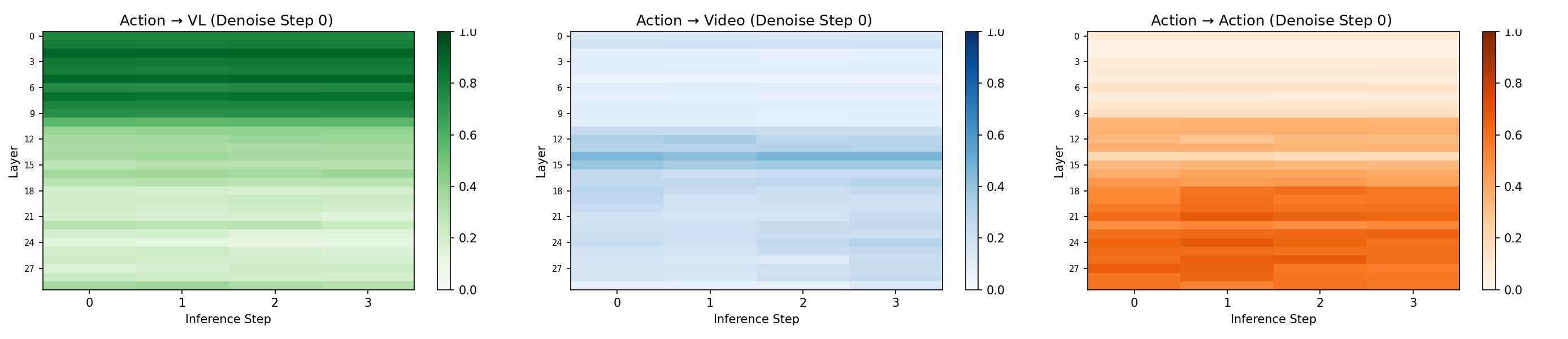

Action attention to VL, video, and action tokens across 30 layers and four inference steps — How action attention shifts with depth

Each map shows the share of action-query attention on one source, per layer (rows) and inference step (columns).
**VL dominates shallow layers, video peaks in the middle, and action self-attention takes over in deep layers.**

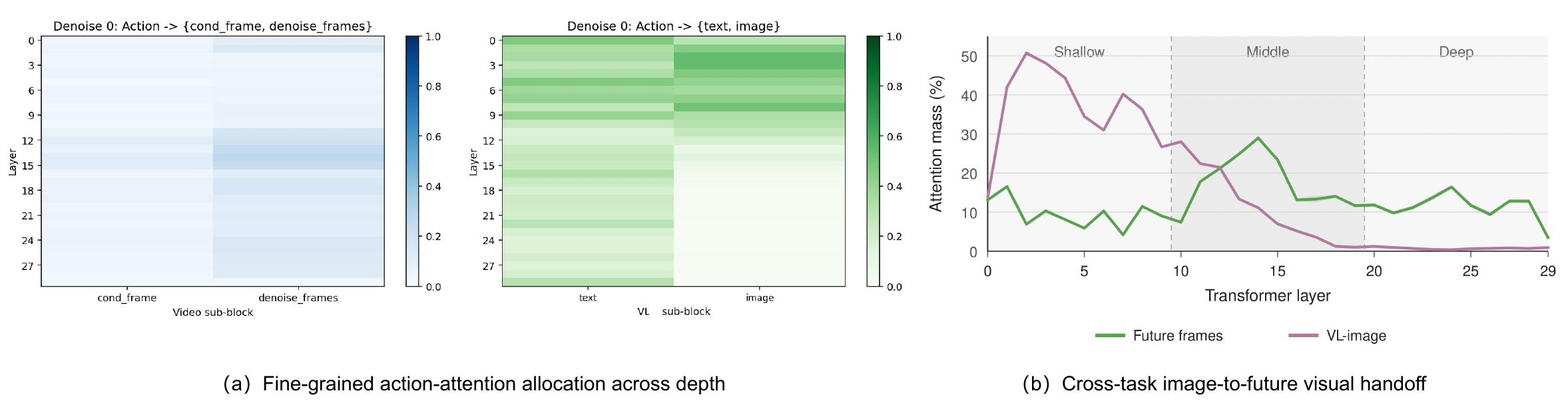

Fine-grained visual handoff across transformer depth — Which visual source is read at each depth?

Splitting visual attention into the current image and the predicted future frames.
**Predicted frames replace the current image as the main visual source from about layer 13, on one task (a) and across all 50 RoboTwin tasks (b).**

Learned during training

The handoff forms within the first few hundred steps

Future-frame minus VL-image attention (pp)

50 steps
VL-image leads at almost every layer; no division yet.
150 steps
Future frames lead from layer 8 onward.
40,000 steps
Shallow layers return to the image; future leads from layer 13 onward.

One training run without robot pretraining. The attention mask sets which sources are reachable, not the depth at which each is used. Hover a step to highlight it.

Action generation depends on it

Masking keys at inference, by source and depth

Success (%)

Full model

92.80

All video · L0–9

91.98

VL · L0–9

76.53

Condition · L10–19

81.40

Future · L10–19

3.55

All video · L10–19

0.25

All video · L20–29

65.82

Shallow · L0–9VL matters
−16.27 without VL; only −0.82 without video.
Middle · L10–19Future is critical
−89.25 when predicted-future keys are masked.

One fixed robot-pretrained checkpoint on RoboTwin Randomized (50 tasks × 100 episodes), masked at inference without retraining.

Table 1 · Layer-targeted interventions on RoboTwin Randomized

Training-time ablations and inference-time masks

Training results (without pretraining)

Configuration	Score	Δ
Full unified model	83	–
Symmetric full attention	81	−2
No VL access, layers 0–9	78	−5
No video access, layers 10–19	78	−5
Action only, layers 24–29	83	0

Inference results (robot-pretrained model)

Configuration	Score	Δ
Full unified model	92.80	–
Mask all video, layers 0–9	91.98	−0.82
Mask VL, layers 0–9	76.53	−16.27
Mask condition, layers 10–19	81.40	−11.40
Mask future, layers 10–19	3.55	−89.25
Mask all video, layers 10–19	0.25	−92.55
Mask all video, layers 20–29	65.82	−26.98

The left panel reports independently trained models without pretraining; the right panel masks action-attention keys only at inference time in one fixed cross-embodiment robot-pretrained checkpoint. Deltas are relative to the full-model baseline within each panel and should not be compared across panels. “Action only” removes both VL and video keys from action queries in the specified layers.

Cross-task replication 50 / 50

Every RoboTwin task exhibits shallow VL dominance.

Denoising stability 0.998

Mean pairwise correlation of attention profiles across measured denoising steps.

Table 2 · Counterfactual future-feature injection

Donor future features steer target rollouts

Task	No injection	Injection setting	Observed behavior or outcome	Success
Adjust Bottle	5/5	Left-facing (43, 46)	Donor-directed first grasp misses; both recover after cutoff	2/2
Adjust Bottle	5/5	Right-facing (44, 45, 47)	Donor-consistent right arm instead of required left arm; no recovery	0/3
Place Empty Cup	5/5	All targets (43–47)	All injected rollouts fail	0/5
Stack Blocks Two	5/5	All targets (43–47)	All injected rollouts fail	0/5
Click Bell	5/5	All targets (43–47)	Only seed 46 remains successful	1/5
Grab Roller	5/5	All targets (43–47)	Only seed 45 remains successful	1/5
Overall	25/25	All injected targets	Success decreases from 100% to 16%	4/25

For each task, future-frame keys and values from a successful donor rollout (seed 100) are injected into target seeds 43–47 at layers 10–19 during the first three policy calls, while each target keeps its own condition-frame, VL, and action representations.

04 / Results

Strong policies across simulation and robots

EWAM is evaluated under complementary protocols: RoboTwin 2.0 clean-to-random and in-domain adaptation, the four LIBERO suites, and seven tasks on three real-world embodiments. Click a card to open the full table.

Table 4 · RoboTwin 2.0 leaderboard

Clean-to-random performance

Paradigm	Model	C2C (%)	C2R (%)	Average (%)
VLA	starVLA	46.52	3.16	24.84
	GalaxeaVLA	62.70	12.72	37.71
	Xiaomi Robotics-0	62.90	18.20	40.55
	X-VLA	68.00	20.90	44.45
	ABot-M0	57.40	30.36	43.88
	π_0.5	70.70	46.00	58.35
WAM	Fast-WAM	77.80	1.90	39.85
	ImageWAM	84.4	18.3	51.35
	X-WAM	70.00	25.80	47.90
	4D-WAM	81.5	41.8	61.6
VLA+WAM	GigaBrain-0.7	66.8	67.9	67.3
VLA+WAM	EWAM (Ours)	82.2	72.1	77.2

A single policy is adapted on clean demonstrations of all 50 tasks and evaluated with 100 episodes per task under clean-to-clean (C2C) and clean-to-random (C2R) conditions. Average is the mean of C2C and C2R. Official leaderboard values use its 2026-09-01 snapshot. The EWAM row uses cross-embodiment robot-pretrained initialization followed by clean-only downstream adaptation.

Table 5 · RoboTwin 2.0 in-domain

Clean and randomized scenes

Paradigm	Model	Clean (%)	Randomized (%)	Average (%)
VLA	π_0.5	82.7	76.8	79.8
	ABot-M0	86.1	85.1	85.6
	LingBot-VLA	88.6	86.7	87.7
	JoyAI-RA	90.5	89.3	89.9
	HyVLA-0.5	90.9	90.1	90.5
	ACE-Ego-0	91.1	90.6	90.9
WAM	GigaWorld-Policy	86.4	85.0	85.7
	LaWAM	92.6	89.8	91.2
	LingBot-VA	92.9	91.5	92.2
	Fast-WAM	91.9	91.8	91.9
VLA+WAM	Motus	88.7	87.0	87.9
	InternVLA-A1	89.4	89.6	89.5
	WLA-0	92.9	90.0	91.5
	EWAM (Ours)	93.0	92.8	92.9

All methods, including EWAM, are adapted on both clean and randomized demonstrations; this protocol differs from the clean-only adaptation in Table 4. Average is the mean of the Clean and Randomized scores.

Table 6 · LIBERO

Four standard task suites

Paradigm	Model	Spatial	Object	Goal	Long	Average
VLA	π_0.5	98.8	98.2	98.0	92.4	96.9
	ABot-M0	98.8	99.8	99.0	96.6	98.6
	Qwen-VLA-Instruct	–	–	–	–	97.9
WAM	Fast-WAM	98.2	100.0	97.0	95.2	97.6
	LingBot-VA	98.5	99.6	97.2	98.5	98.5
	LaWAM	99.4	99.6	98.4	97.0	98.6
VLA+WAM	Motus	96.8	99.8	96.6	97.6	97.7
	WLA-0	99.0	100.0	97.8	97.6	98.6
	EWAM (Ours)	98.6	99.8	98.6	98.2	98.8

Success rate (%) on the four LIBERO suites. Average is the mean across suites. Comparison results are taken from the corresponding published evaluations; a dash indicates that only the overall score was reported.

Real-world evaluation

Seven tasks on three embodiments

π_0.5EWAM

FrankaStack Bowls

70

80

FrankaObject into Box

80

90

DobotPour Water

30

70

DobotTidy Desk

20

80

DobotTowel

40

G1-DKettle Pouring

60

70

G1-DPour Beans

60

80

Success rate (%) on physical robots. EWAM is higher than π_0.5 on six tasks and ties on the Dobot towel task.

66.7%

Generalization on G1-D pour beans

Held-out cups, placements, and backgrounds, versus 80% in-domain.

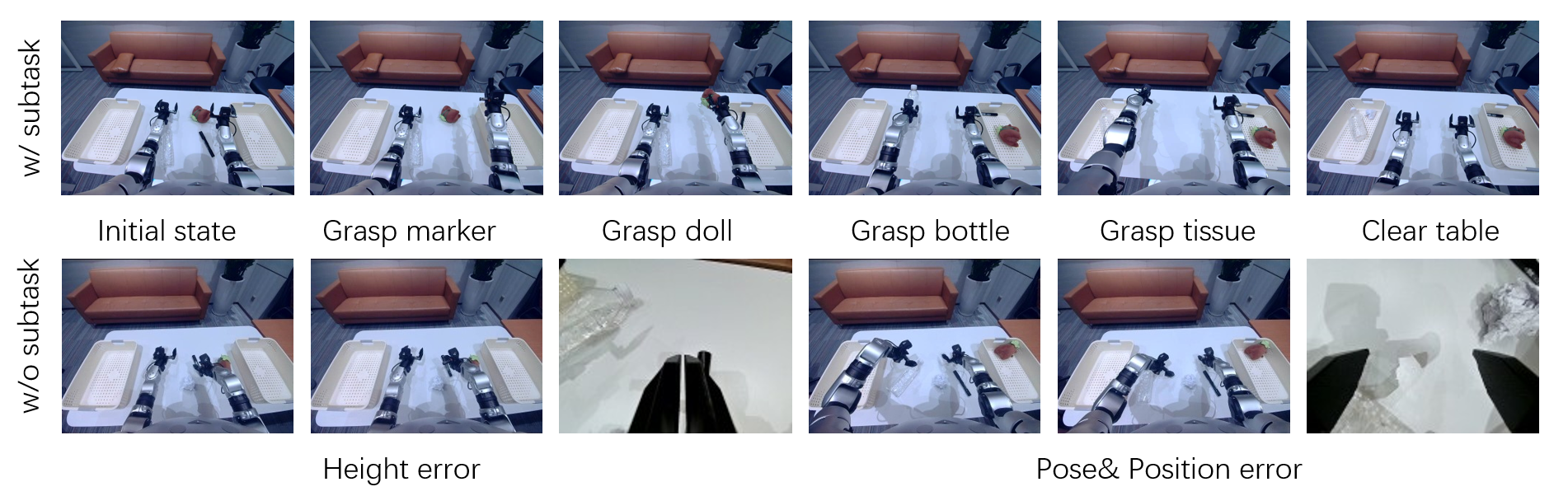

Long-horizon progress

Subtask-phase supervision

w/o subtaskw/ subtask

Instructed Ranking

83.5

91.0

Instructed Stacking

44.5

58.5

Ranking & Stacking

1.5

16.0

Full-episode success (%) over 200 episodes per instruction-conditioned block task.

Tables 7–8 · Real-world evaluation

Task success rates on three embodiments

Table 7 · Franka

Model	Stack Bowls	Object into Box
π_0.5	70	80
Motus	60	20
LingBot-VA	70	60
Xiaomi Robotics-0	70	70
Fast-WAM	60	30
EWAM (Ours)	80	90

Table 8 · Dobot and Unitree G1-D

Model	Dobot			Unitree G1-D
Model	Pour Water	Tidy Desk	Towel	Kettle Pouring	Pour Beans
π_0.5	30	20	40	60	60
Motus	30	10	30	30	40
Fast-WAM	20	70	0	20	30
EWAM (Ours)	70	80	40	70	80

Success rate (%) over physical trials on each task. EWAM attains the highest available success rate on every task and ties π_0.5 on the Dobot towel task.

Table 9 · Stage-resolved generalization

G1-D pour beans, one factor varied at a time

Condition	Trials	S	P	F	Success (%)
In-domain baseline	10	8	2	0	80.0
Cup instance	10	7	3	0	70.0
Placement	10	7	2	1	70.0
Background and clutter	10	6	4	0	60.0
All held-out conditions	30	20	9	1	66.7

S: completed with no stage error; P: at least one stage fails but the episode runs to completion; F: outright failure. Success counts S only. Failures concentrate near pouring: across all 40 trials, grasping succeeds in 39, alignment in 29, and pouring in 28, and most incomplete trials involve spills from inaccurate cup alignment.

Table 10 · Subtask-phase supervision

Long-horizon block tasks

Task	Setting	Grasp	Place	Stack	Full
Instructed Ranking	w/o subtask	94.0	89.5	–	83.5
Instructed Ranking	w/ subtask	93.5	97.5	–	91.0
Instructed Stacking	w/o subtask	91.5	–	44.5	44.5
Instructed Stacking	w/ subtask	98.5	–	58.5	58.5
Instructed Ranking & Stacking	w/o subtask	60.0	37.0	24.5	1.5
Instructed Ranking & Stacking	w/ subtask	63.0	51.5	39.5	16.0

Success rates (%) over 200 episodes per task. Grasp, Place, and Stack are stage-wise completion rates; Full is complete-episode success. Dashes mark inapplicable stages.

05 / Human egocentric data

Low-cost human data for transfer and robustness

EWAM uses human data in two separate ways: large-scale public egocentric video for pretraining, and self-collected task demonstrations retargeted to the robot for co-training.

Route 1

Human pretraining improves cross-embodiment transfer

About 2,084 hours of VITRA-1M, EgoDex, and Xperience video are reduced to one camera-relative wrist-motion action space. Policies trained on four RoboTwin robots are then evaluated on the held-out Aloha-Agilex-2; the compared policies differ only in whether they start from human pretraining.

Held-out robot embodiment

Human pretraining improves transfer

Without human pretrainingWith human pretraining

60

40

20

33.5

44.3

40K

37.2

53.4

50K

40.1

58.9

80K

36.2

66.9

120K

Aggregate success over 50 RoboTwin 2.0 tasks on the unseen Aloha-Agilex-2 embodiment.

2,084 h

Public egocentric video, with wrist motion as the action target.

40.1 → 66.9%

Best held-out-embodiment success without and with human pretraining.

36.2 → 66.9%

Matched budget of 120K robot-training steps: a 30.7-point gain.

40 → 60%

G1-D pouring under the same 60 robot + 30 human co-training mixture, robot- vs. human-pretrained.

Route 2

Egocentric co-training improves real-robot robustness

For co-training, we record task-specific demonstrations with a headset and wrist trackers, convert them into robot-compatible observation–action trajectories, verify them by replay, and mix them with robot episodes.

1Capture

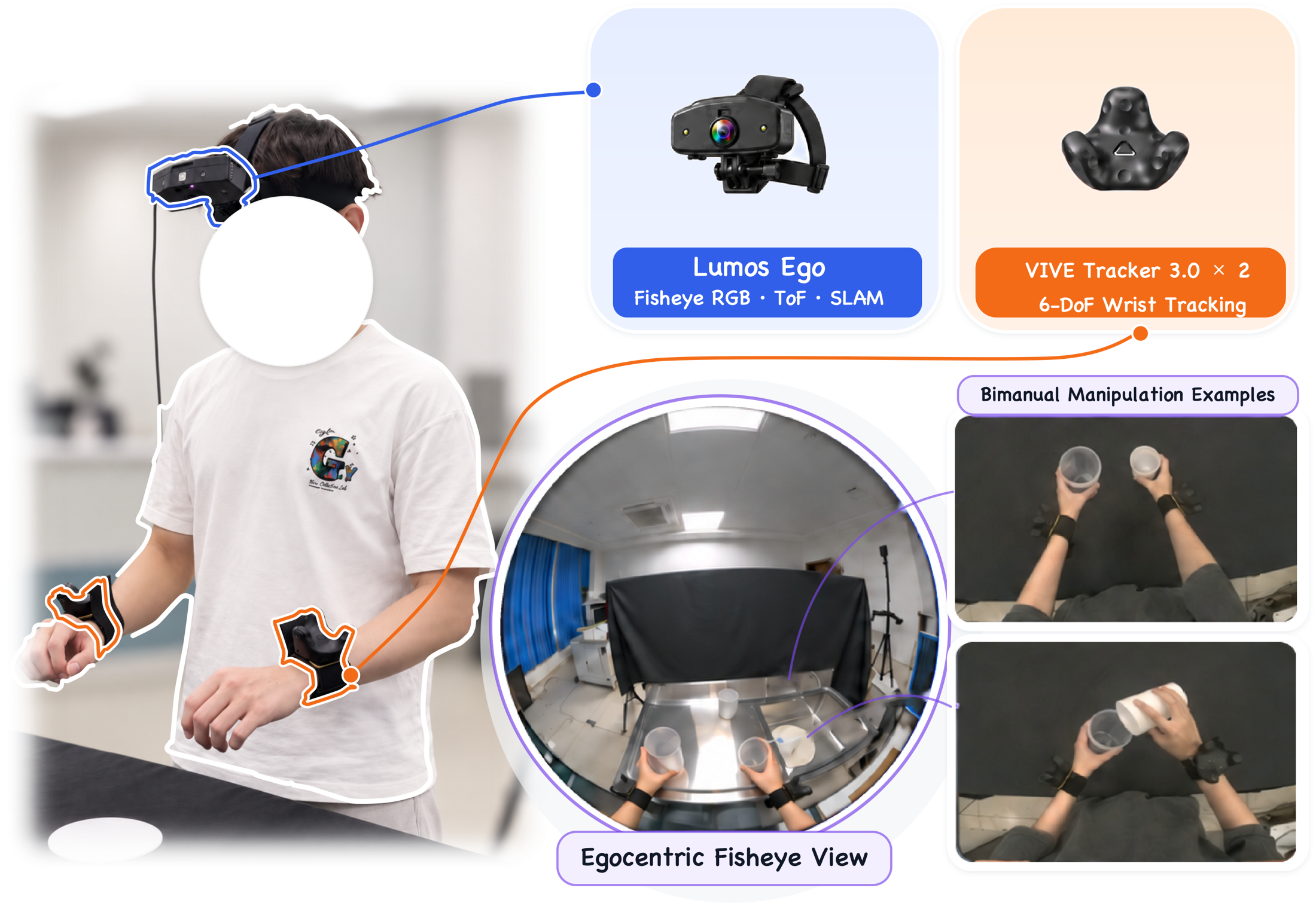

Egocentric demonstration collection system with a Lumos Ego headset and two wrist-mounted Vive Trackers — A headset records fisheye RGB, depth, and camera motion, while two wrist trackers measure metric 6-DoF wrist motion.

2Convert

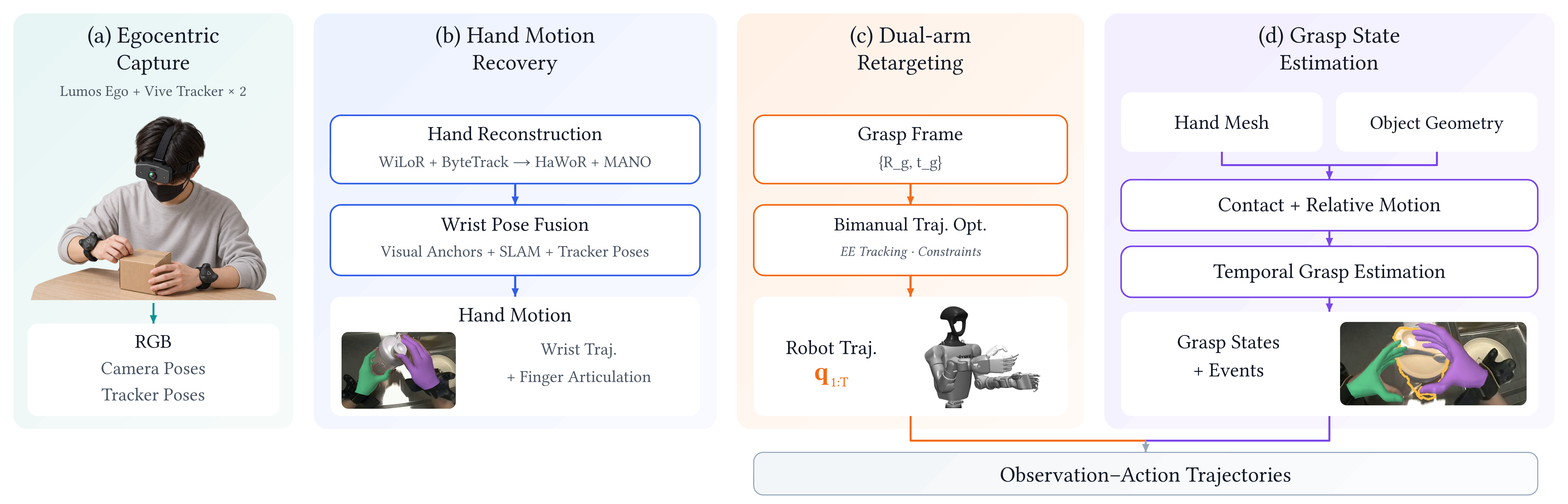

Egocentric capture and observation-action trajectory construction — Hand reconstruction, tool alignment, and grasp-state estimation turn each human recording into robot trajectories paired with the captured images.

3Verify

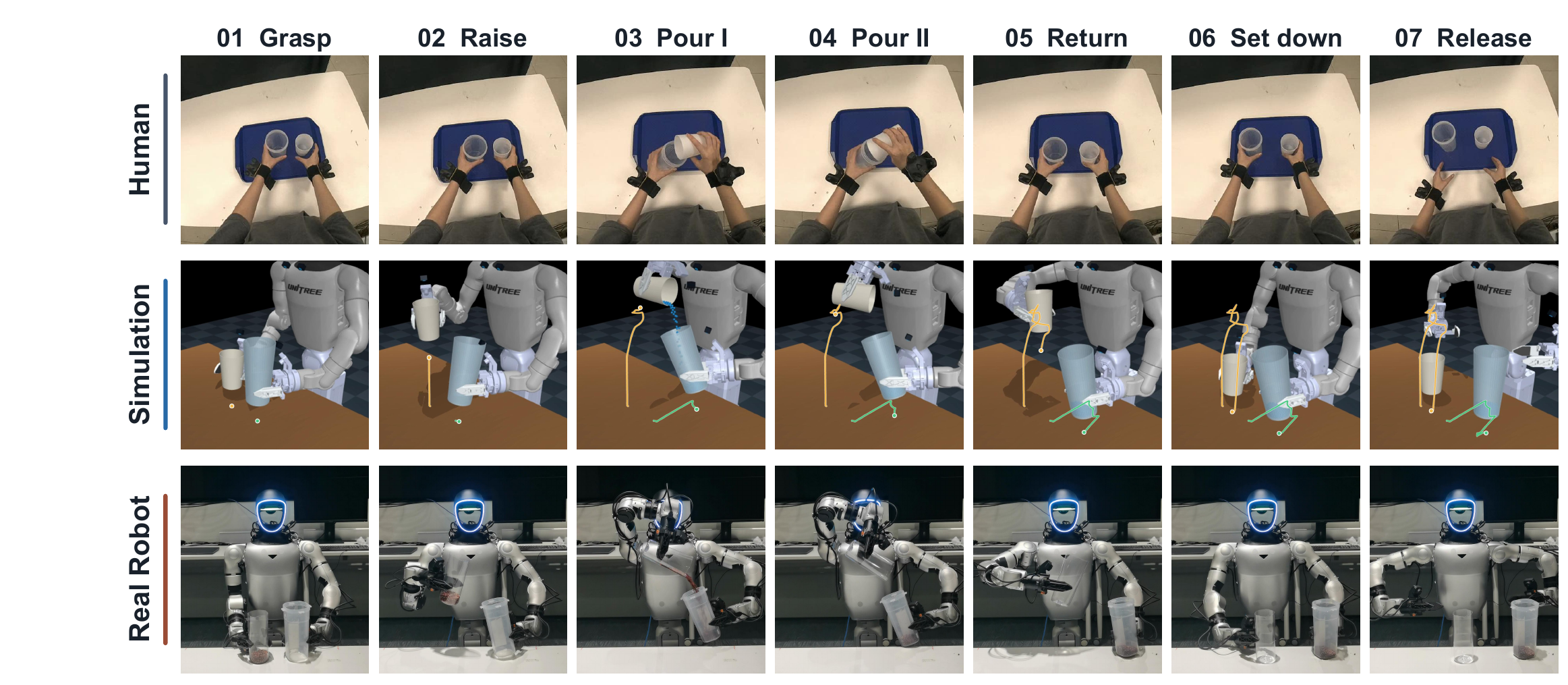

Human egocentric demonstration, simulation replay, and physical robot replay — The same pour as a human recording, a simulation replay, and a real G1-D replay. Robot rows replay the converted trajectories, not policy rollouts.

Replay walkthrough: one human demonstration and its simulation and G1-D replays, aligned phase by phase from grasp to release.

4Co-train

Real-robot robustness

Egocentric data scaling under tabletop and cup changes

Robot only60 robot + egocentric

60

40

20

0

30robot only

10

60robot only

20

90robot only

20

+30egocentric

30

+60egocentric

40

+120egocentric

60

+1,000egocentric

All configurations omit EWAM human and robot pretraining and are evaluated over 10 physical trials.

30 episodes

Adding 30 egocentric episodes to 60 robot episodes reaches 20%, the same as 90 robot-only episodes, at a much lower collection cost.

10% → 60%

Adding 30 to 1,000 egocentric episodes keeps raising success under tablecloth and cup changes, without saturating.

06 / Demonstrations

Real-world manipulation across embodiments

Rollouts of EWAM across embodiments and tasks.

01TowelDobot dual-arm

02Tidy DeskDobot dual-arm

03Pour WaterDobot dual-arm

04Stack BowlsFranka

05Pour BeansUnitree G1-D

06Pour Beans · Tablecloth ChangeUnitree G1-D

07 / Authors

Authors

Core Contributors

Hao Wang^1,2, Jiajun Wen³, Jingzhi Liu¹, Shuoshuo Xue¹, Zhiliang Chen^2,4

Contributors

Min Lin¹, Yicheng Chang¹, Xiaoyu Guo⁵, Yukang Zhuo¹, Zheng Chong¹, Yunshuang Nie³, Jian Zhang⁶, Weijia Liufu¹, Qingman Wu¹, Heming Xu⁷, Bingchang Song⁸, Dantong Wu⁹, Zhiyuan Wang⁹

Guidance Group

Hang Xu⁹, Jianhua Han⁹, Bokui Chen³, Shen Zhao¹

Project Leaders

Rui Li⁹, Xiaodan Liang^1,9

Sun Yat-sen University
Beijing Zhongguancun Academy
Tsinghua University
Fudan University
South China University of Technology
Mohamed bin Zayed University of Artificial Intelligence
Northwest University, Xi'an
Southern University of Science and Technology
Yinwang Intelligent Technology Co. Ltd.

08 / Cite

Read and cite EWAM

Read the full technical report or copy the citation.

Technical report

@article{wang2026ewam,
  title   = {{EWAM}: Emergent Depth-Wise Specialization in a Unified Embodied Model -- From Semantic Understanding through Visual Foresight to Action},
  author  = {Wang, Hao and Wen, Jiajun and Liu, Jingzhi and Xue, Shuoshuo and Chen, Zhiliang and Lin, Min and Chang, Yicheng and Guo, Xiaoyu and Zhuo, Yukang and Chong, Zheng and Nie, Yunshuang and Zhang, Jian and Liufu, Weijia and Wu, Qingman and Xu, Heming and Song, Bingchang and Wu, Dantong and Wang, Zhiyuan and Xu, Hang and Han, Jianhua and Chen, Bokui and Zhao, Shen and Li, Rui and Liang, Xiaodan},
  journal = {arXiv preprint arXiv:2609.39973},
  year    = {2026}
}

EWAM Emergent Depth‑Wise Specialization in a Unified Embodied Model

Semantic understanding

Visual foresight

Action formation

One model.Three forms of computation.
